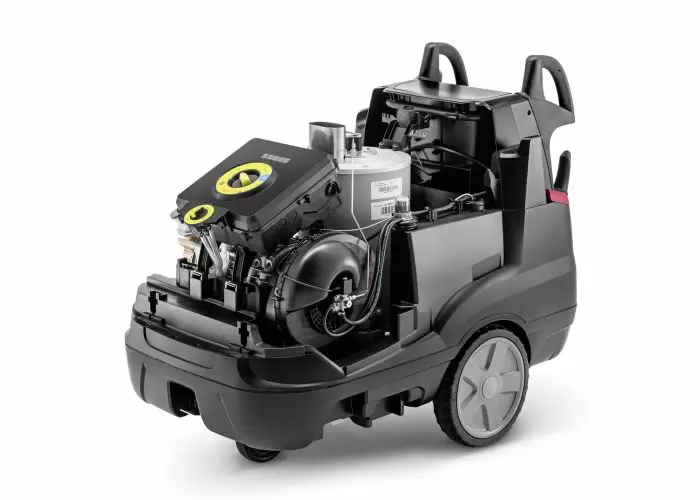

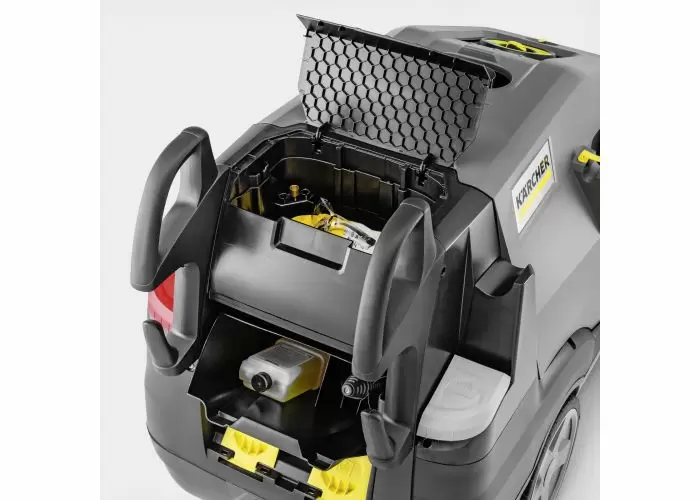

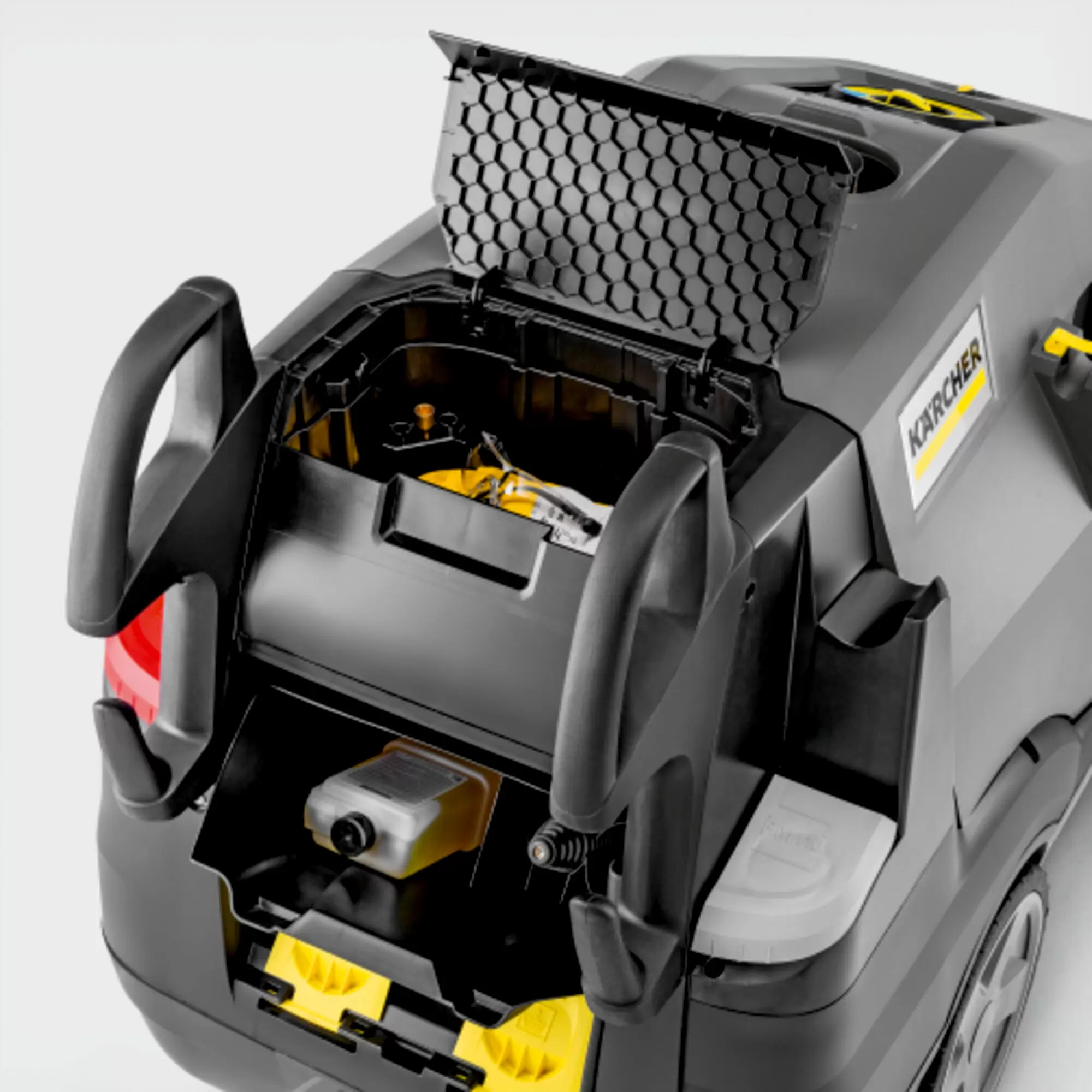

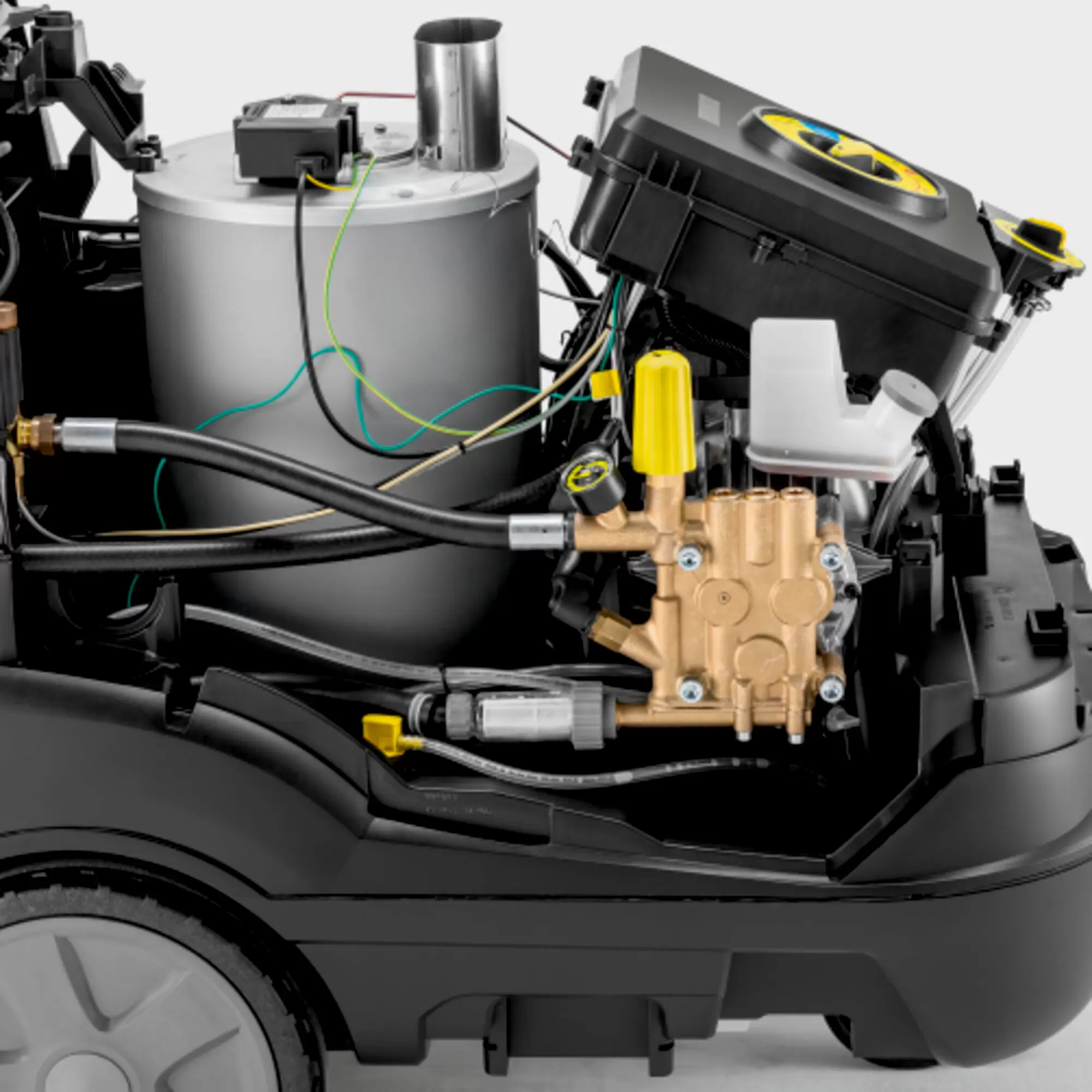

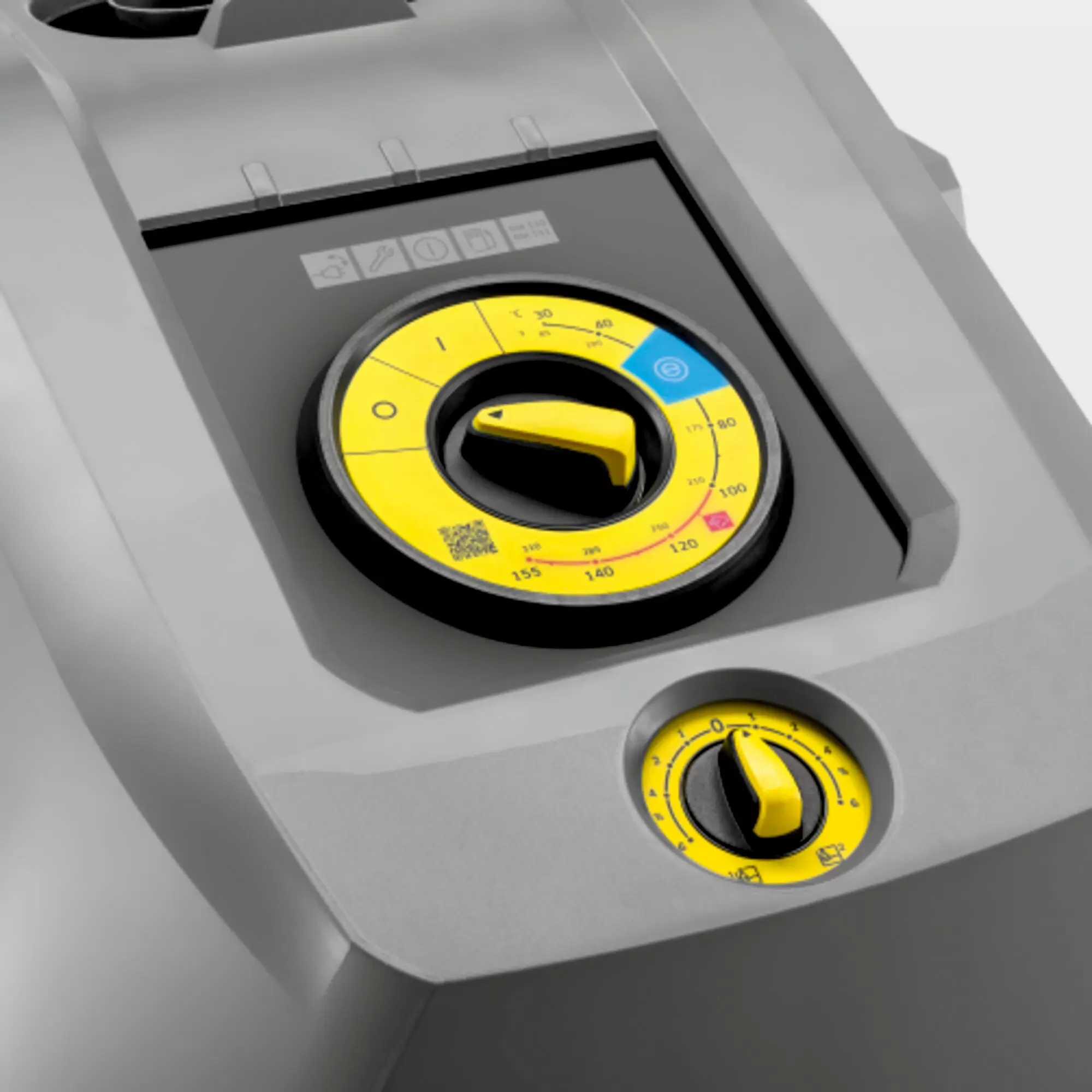

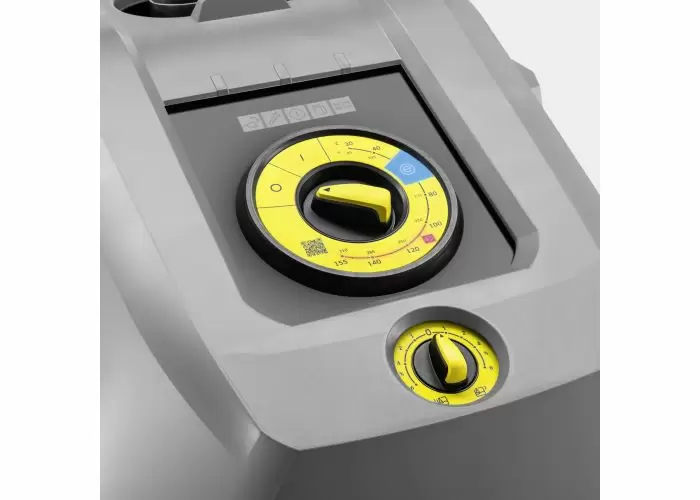

Feature and Benefits High efficiency In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow. The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation. Maximum efficiency Highly efficient, tried-and-tested “Made in Germany” burner technology. 4-pole electric motor with 3-piston axial pump. Water-cooled motor for a high performance and long service life. Multiple storage spaces for accessories integrated into the machine On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord. Spacious storage compartment, e.g. for detergents, gloves or tools. Specifications Technical data Power supply (Ph/V/Hz) – 3 / 400 / 50 Flow rate (l/h) – 600 – 1300 Working pressure (bar/MPa) – 30 – 200 / 3 – 20 Temperature (for supply 12 °C) (°C) – min. 80 – max. 155 Consumption of fuel oil at full load (kg/h) – 9,5 Consumption of heating oil in eco!efficiency mode (kg/h) – 7,6 Connected load (kW) – 9,5 Power cable (m) – 5 Fuel tank (l) – 25 Weight (with accessories) (kg) – 206 Weight incl. packaging (kg) – 215,9 Dimensions (L × W × H) (mm) – 1330 x 750 x 106 Equipment Pressure cut-off Option for the 2 spray lance operation Pole reverse plug (3~) Soft Damping System (SDS) 2 Detergent tanks Dry-running protection 1.071-937.0_Operating_Instructions_1 1.071-937.0_Operating_Instructions_2 1.071-937.0_Product_Information_en_INT
