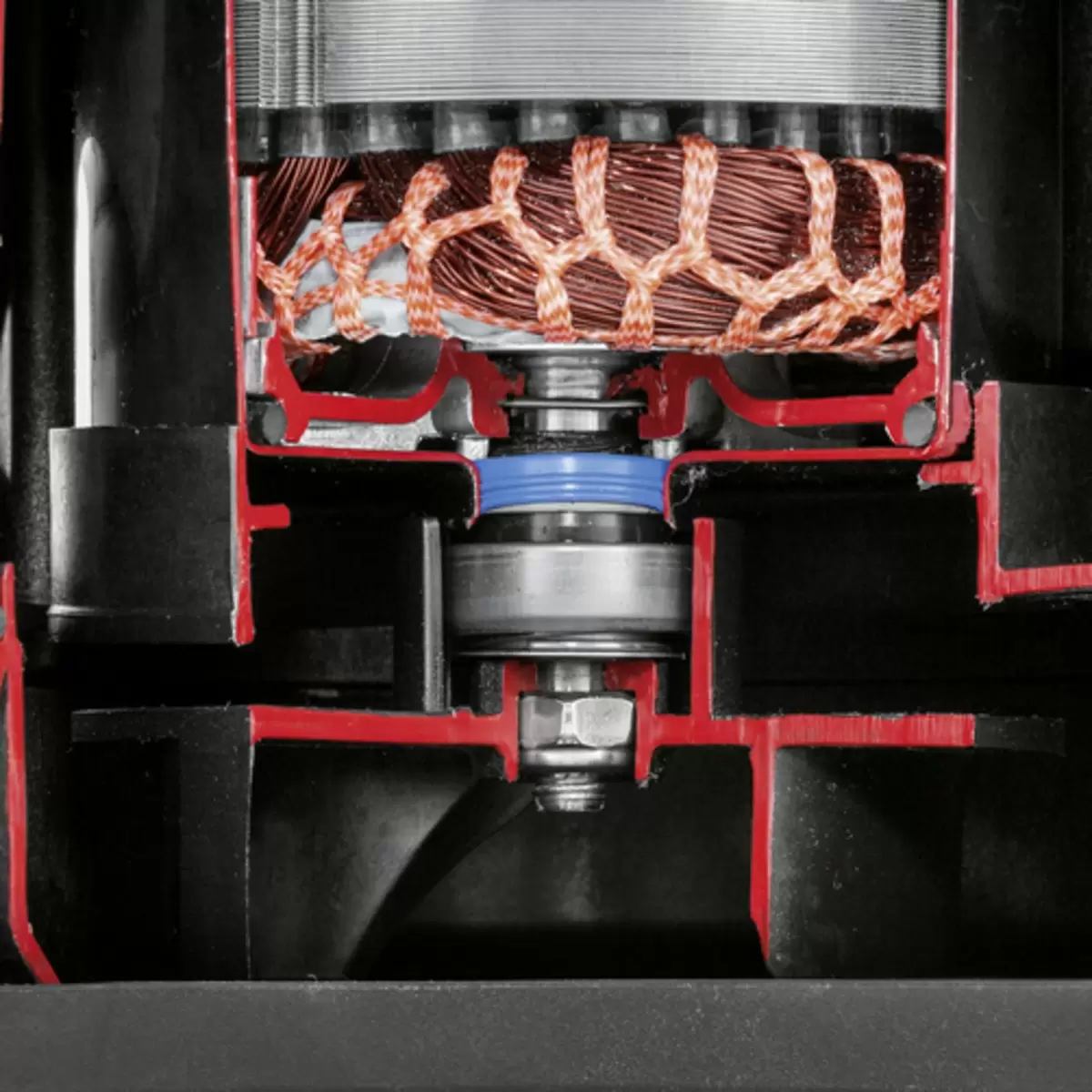

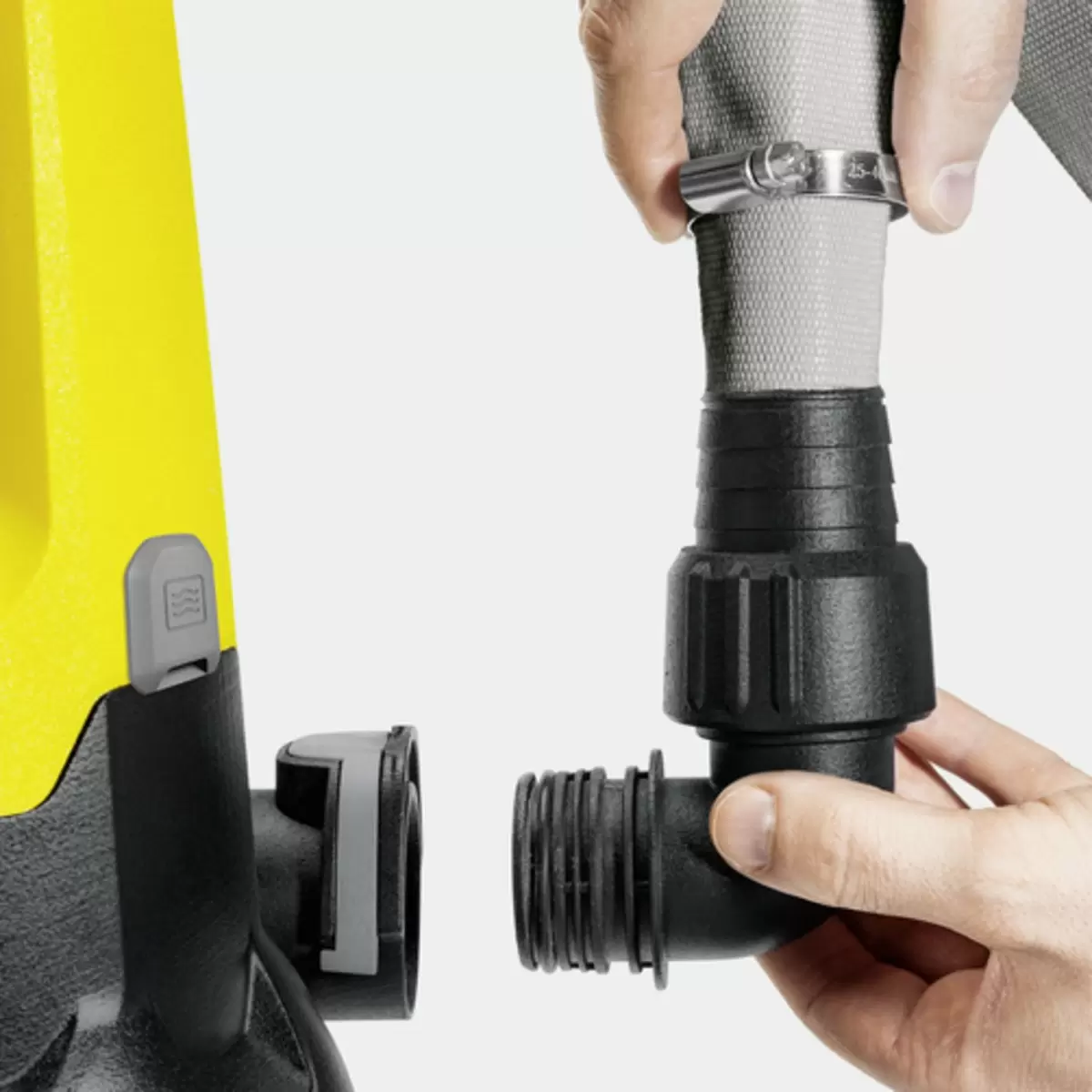

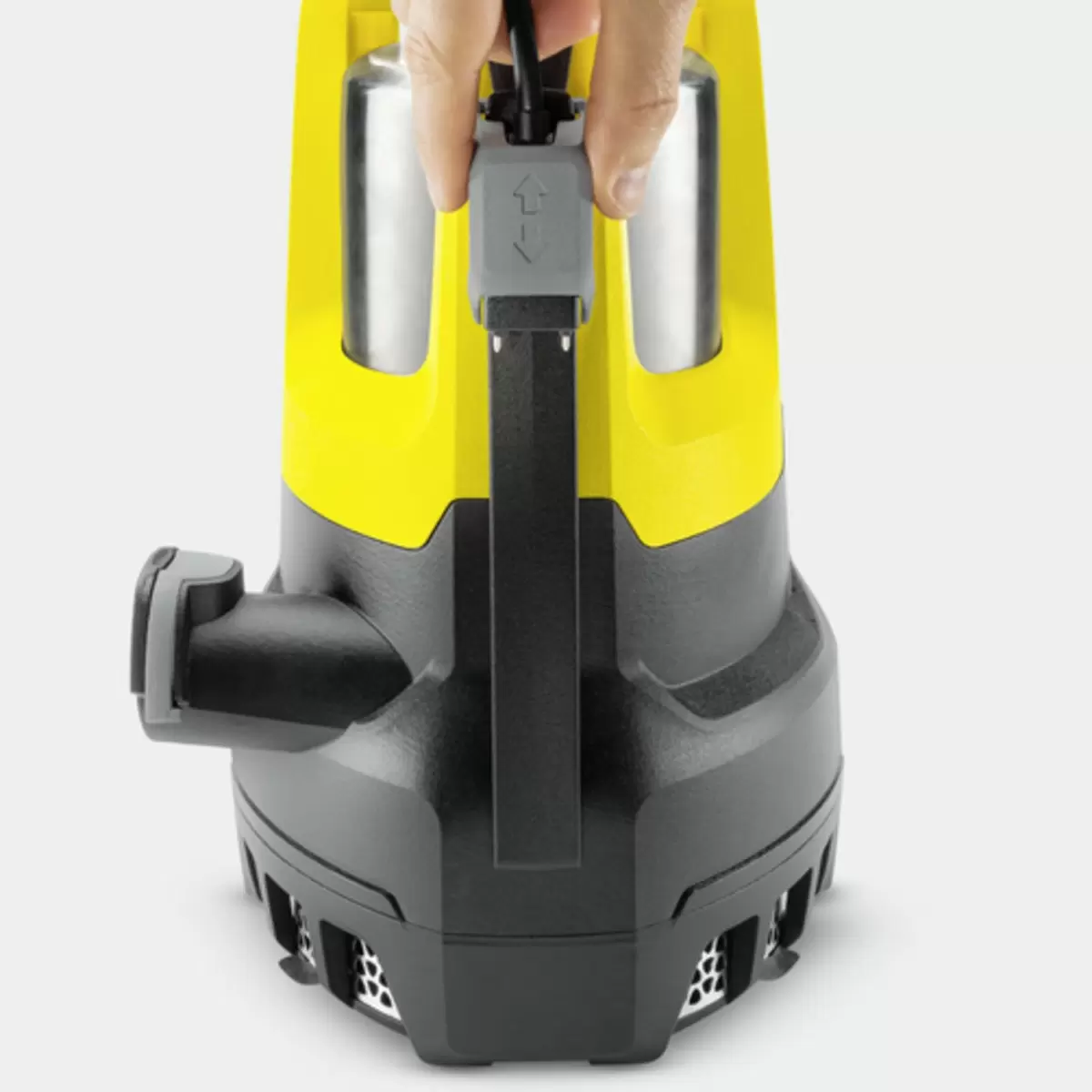

An individually adjustable level sensor starts the dirty water pump SP 22,000 Dirt Level Sensor immediately upon contact with water. If the water level drops below the level sensor again, the pump stops automatically after 15 seconds. The extremely powerful submersible pump is ideal for draining, for example, large garden ponds, flooded basements or construction pits, as it can reliably pump out dirty water (dirt particles of up to 30 mm) at a rate of up to 22,000 l/h. With even dirtier water, the integrated pull-down stainless steel prefilter serves to protect against blockages. The submersible pump can also be switched to continuous operation by means of the Automatic/Manual switch. It can reliably pump water away down to a residual water level of 35 millimetres – both in continuous operation and in automatic mode, when the level sensor is set accordingly. With the Quick Connect connection thread, 1″, 1 1/4″ and 1 1/2″ inch hoses can be connected without complication. Thanks to the stainless steel housing and robust slide ring sealing, the pump has a particularly long service life. An extended warranty of five years is available as an option. Feature and Benefits Ceramic Face Seal For an extra long lifetime. Level Sensor For continuously variable definition of the switch-on and switch-off points of the pumps. Quick Connect Connection thread for quick and uncomplicated connection of 1″, 1 1/4″ and 1 1/2″ hoses. Specifications Technical data Max. Motor Rating (W) – 750 Max. Flow Rate (l/h) – < 22000 Delivery Temperature (°C) – max. 35 Delivery Head (m) – 8 Pressure (bar) – max. 0.8 Grain Size (mm) – max. 30 Depth of Immersion (m) – max. 7 After-Running Time (ss) – 15 Min. Residual Water, manual (mm) – 35 Residual Water Height (mm) – 35 Connecting Thread – G1 1/2 Power Cable (m) – 10 Voltage (V) – 230 – 240 Frequency (Hz) – 50 Weight without accessories (kg) – 6.7 Weight incl. packaging (kg) – 7.6 Dimensions (L × W × H) (mm) – 238 x 293 x 354 Equipment Comfortable Carrying Handle Connecting Hose: 1”, 1 1/4”, 1 1/2” Easy hose connection thanks to Quick Connect Switching between manual/automatic operation: Switch on the pump Level Sensor: Continuous switching level definition Integrated Stainless Steel Prefilter In automatic operation (auto), the pump automatically switches with the water level In manual operation, the pump runs continuously until the minimum quantity of residual water is reached Ceramic Face Seal
