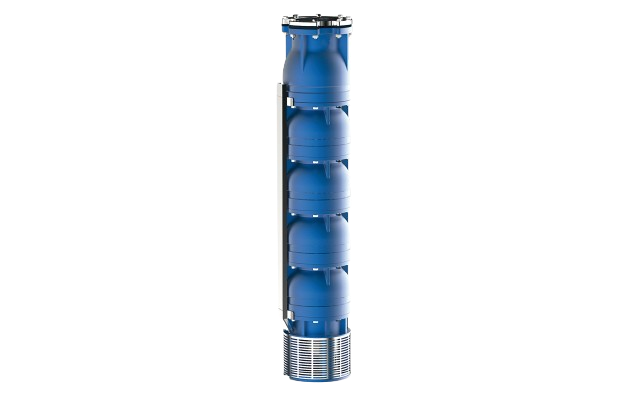

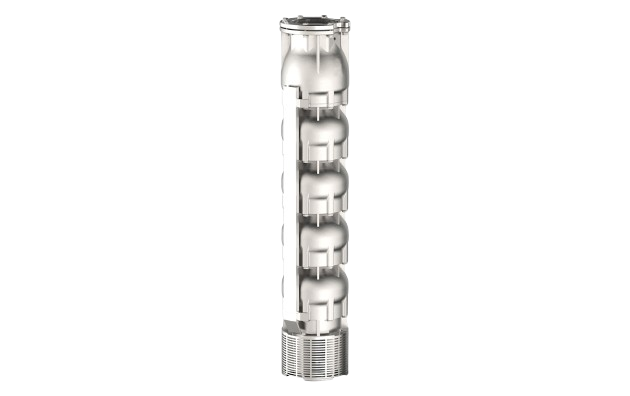

Submersible Multistage Centrifugal Pumps of Radial Type for 6” Wells. These pumps feature a check valve integrated into the delivery outlet. The pump motor bracket is designed in compliance with NEMA standards. All components are constructed from stainless steel using lost wax microfusion technology. The standard material is AISI 304 stainless steel. Alternatively, the following materials are available upon request: AISI 316 stainless steel and Duplex steel (EN 1.4462). The bushing bearings and wear rings are made from sand abrasion-resistant rubber, while the reverse-thrust ring is crafted from PTFE/Graphite. These pumps are ideal for a variety of applications, including civil and agricultural use.
| Title | Description |
|---|---|
| Suction and delivery outlet | stainless steel AISI 304 (LRHS), stainless steel AISI 316 (LRHX), Duplex 1.4462 (LRHD) |
| Valve | stainless steel AISI 304 (LRHS), stainless steel AISI 316 (LRHX), Duplex 1.4462 (LRHD) |
| Impellers and diffusers | stainless steel AISI 304 (LRHS), stainless steel AISI 316 (LRHX), Duplex 1.4462 (LRHD |
| Upper bushings | rubber NBR |
| Shaft pump side | stainless steel AISI 304 (LRHS), stainless steel AISI 316 (LRHX), Duplex 1.4462 (LRHD) |
| Liquid temperature | max 30 °C (max 50 °C on request) |
| Quantity of sand in the water | max 100 gr/m³ |
| Max Depth of immersion | 350 m |
| Title | Description |
|---|---|
| Asynchronous 2 poles motor | rewindable water cooled |
| Insulation class | Y (max 30 °C) - winding type PPC;, F (max 50 °C) - winding type PE2+PA or LPE |
| Protection degree | IP68 |
