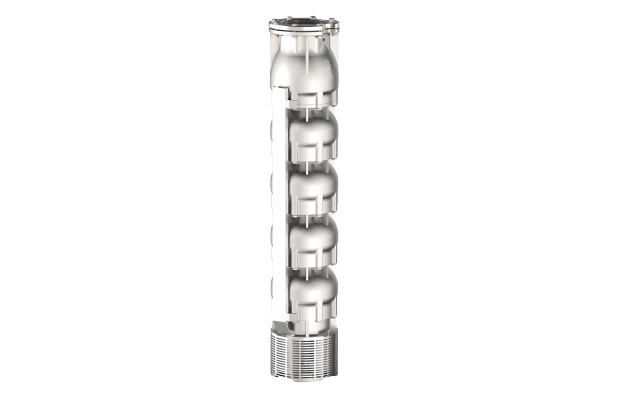

Submersible multistage centrifugal pumps for 8” wells. Check valve built into the delivery outlet. Pump flange for coupling with motors are made according to NEMA standards. Most common applications are civil and agricultural. All components are made of stainless steel with lost wax Microfusion technology. The standard material is AISI 304 stainless steel, alternatively the following materials are available on request: AISI 316 Steel, Duplex steel, AISI 904L Steel. Bushing bearings and wear-rings made of sand abrasion-resistant rubber, reverse-Thrust ring in PTFE/ Graphite.
| Title | Description |
|---|---|
| Suction and delivery outlet | stainless steel AISI 304 (LMS), stainless steel AISI 316 (LMX), Duplex (LMD) |
| Valve | stainless steel AISI 304 (LMS), stainless steel AISI 316 (LMX), Duplex (LMD) |
| Impellers and diffusers | stainless steel AISI 304 (LMS), stainless steel AISI 316 (LMX), Duplex (LMD) |
| Upper bushings | rubber NBR |
| Shaft pump side | stainless steel AISI 304 (LMS), stainless steel AISI 316 (LMX), Duplex (LMD) |
| Liquid temperature | max 100 gr/m³ |
| STAINER | 350 m |
