Bare shaft centrifugal pump constructed in compliance with EN 733 standards; widely used in water supplies, pressurisation and fire-fighting systems.
| Title | Description |
|---|---|
| Motor bracket | cast iron |
| Shell, motor cover, base support | cast iron |
| Shell, motor shaft | cast iron, bronze, steel |
| Pump shaft extension | mechanics ceramic-graphite-NBR or graphite impregnated cotton packing |
| Passage of solids | stainless steel AISI 316 |
| G | -10 ÷ +90 °C |

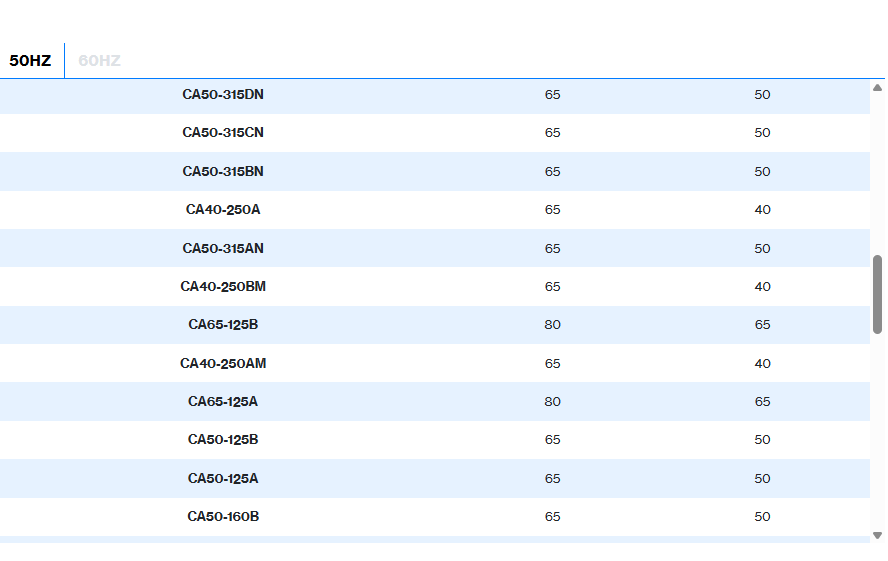

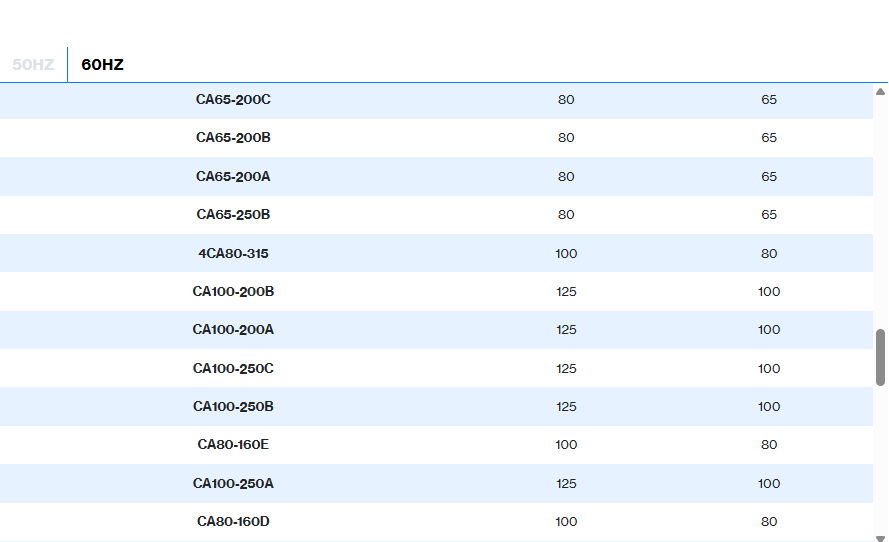

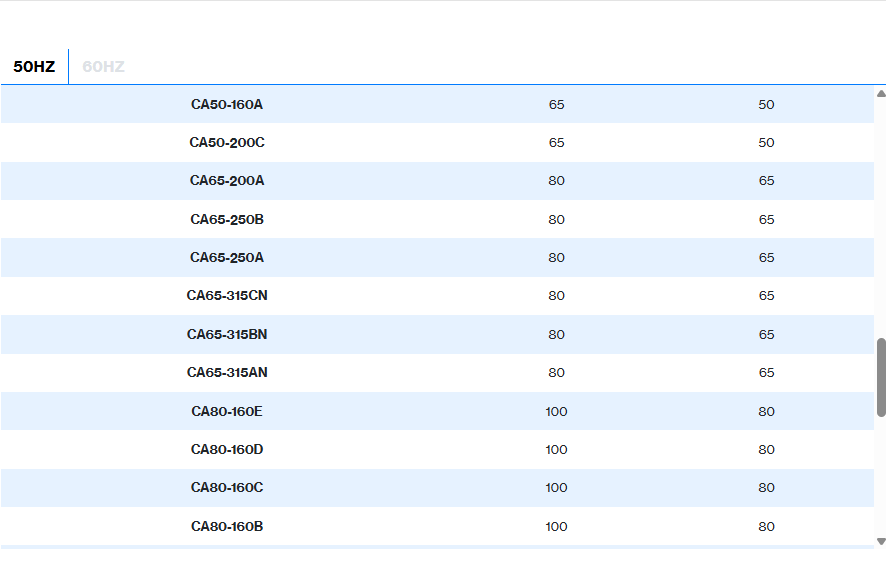

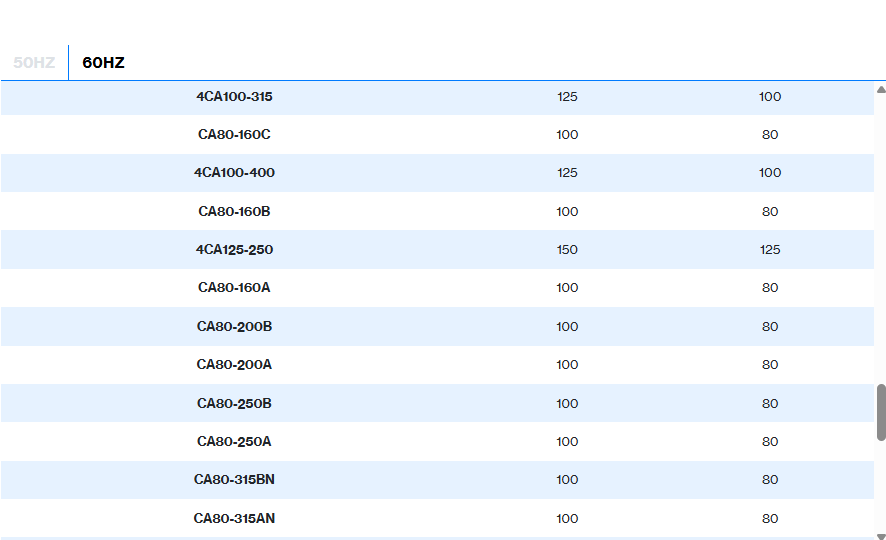

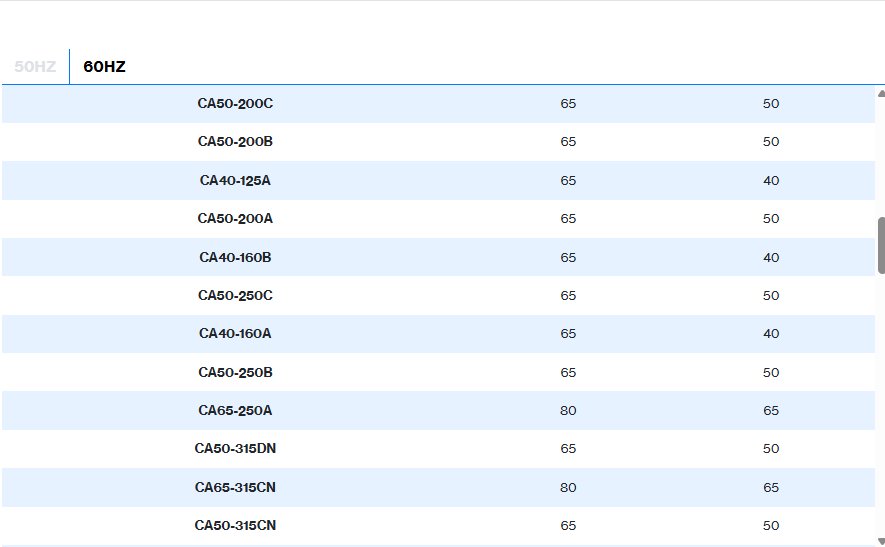

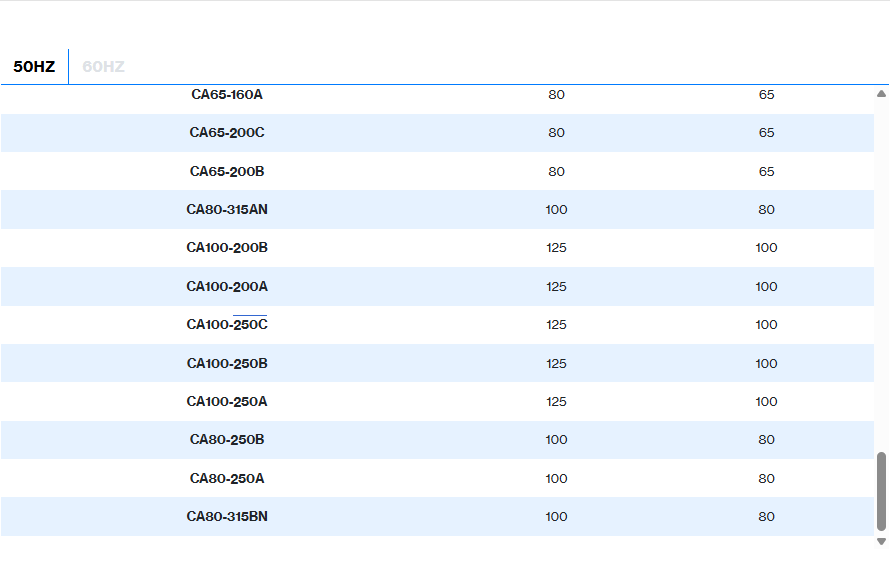

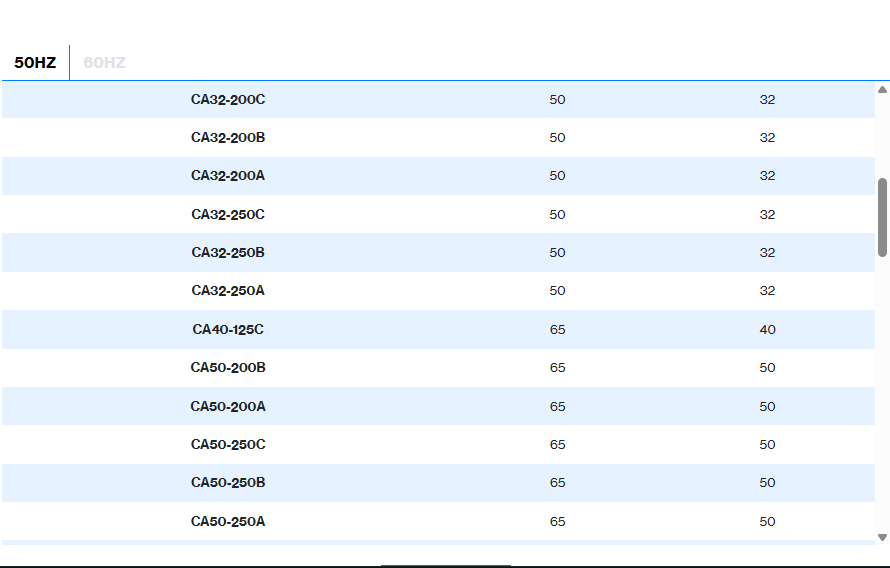

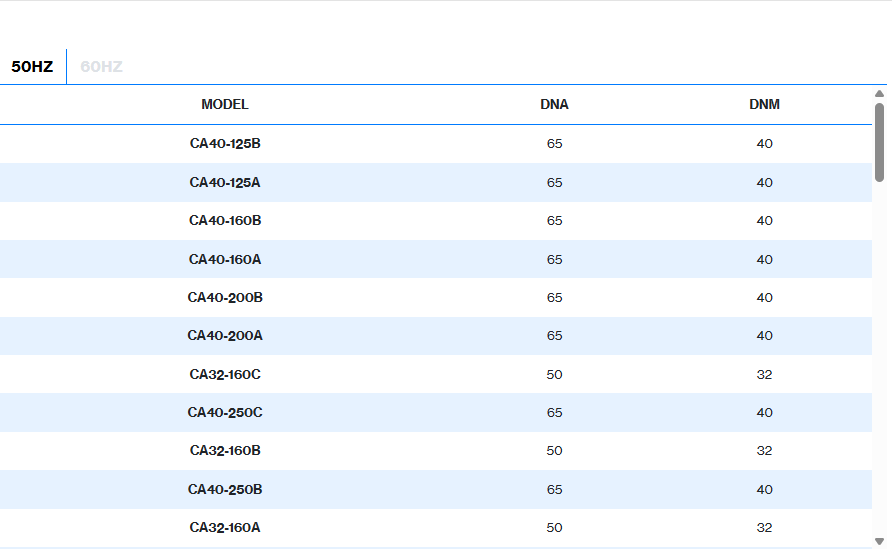

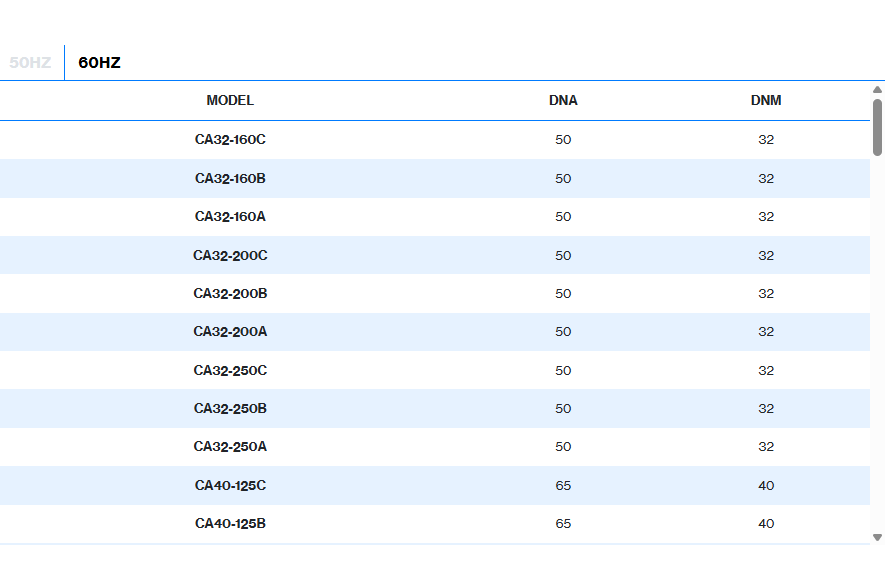

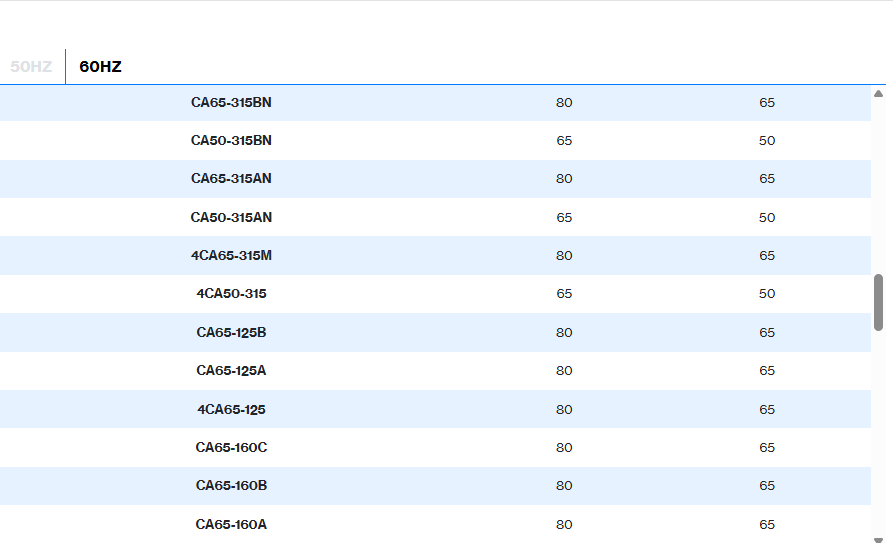

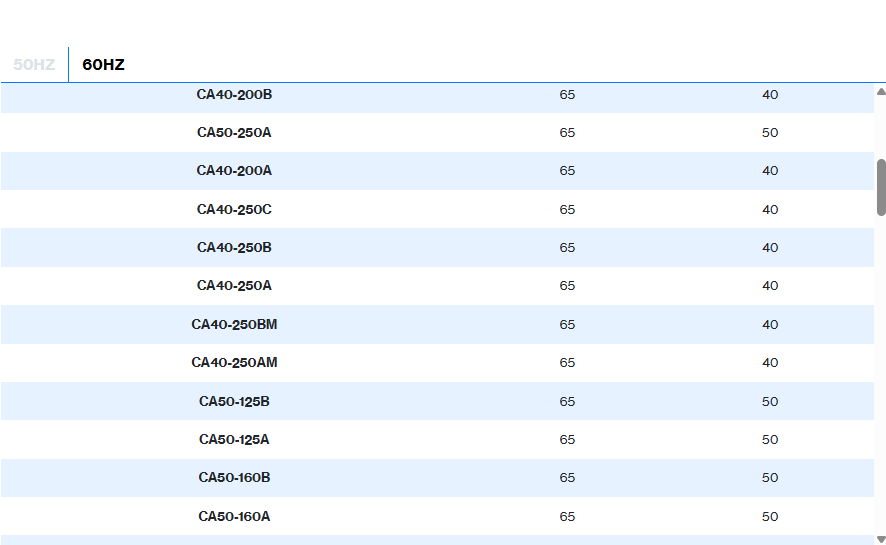

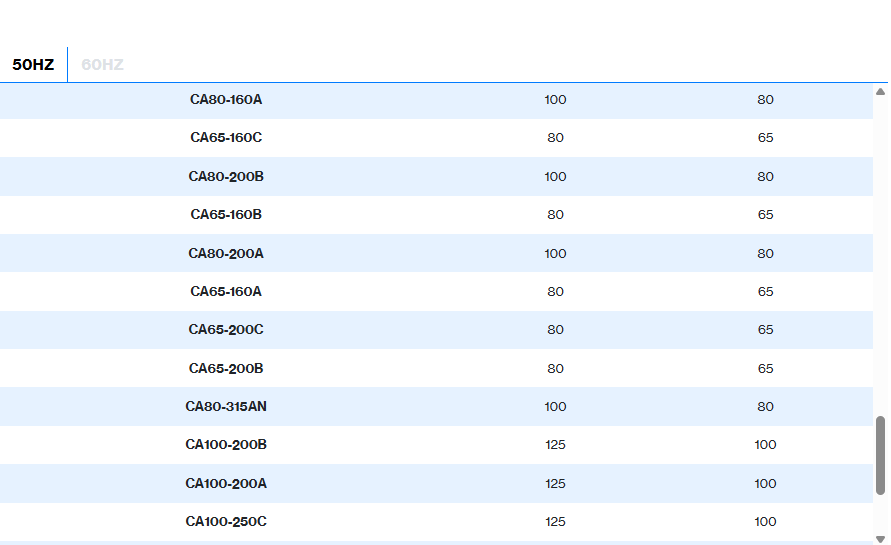

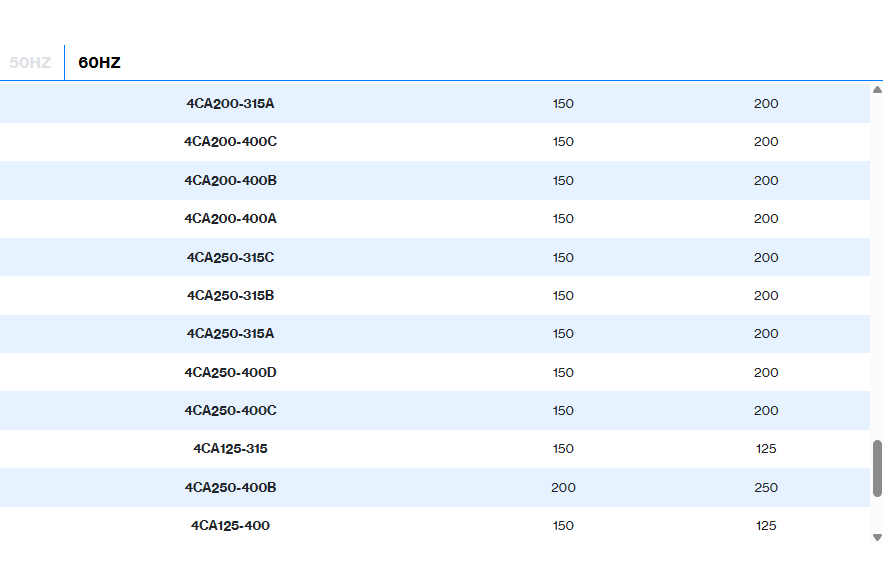

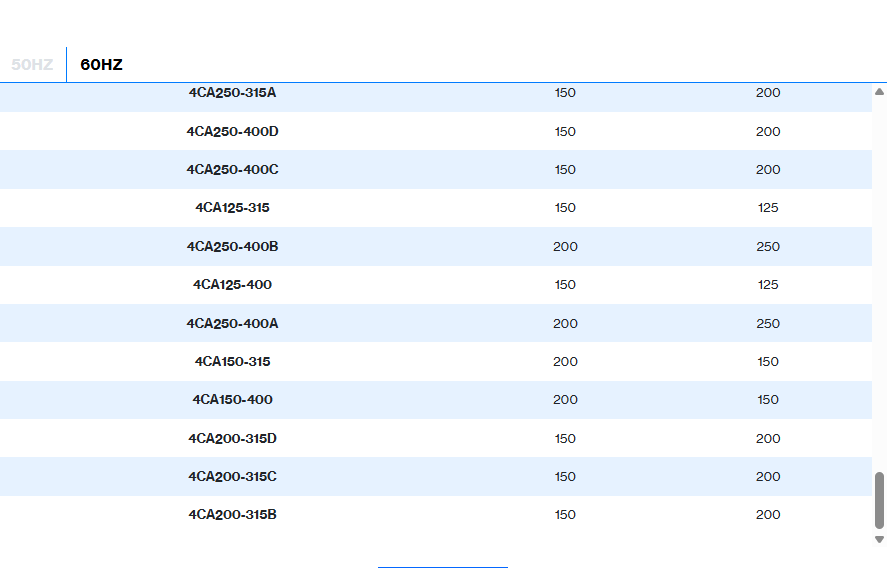

| Supported Models | max 10 bar, max 14 bar (... -315 ~ 2900 r.p.m.) |
| Title | Description |
|---|---|
| Motor | Disponibile con motore in Efficiency class IE3 o standard |
