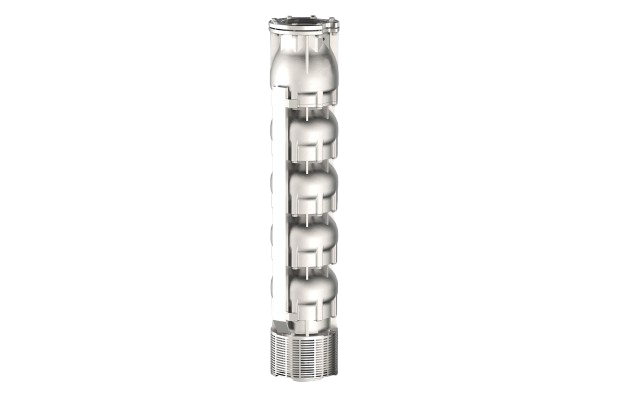

Submersible multistage centrifugal pumps for 8” wells. Check valve built into the delivery outlet. Pump flange for coupling with motors are made according to NEMA standards. Most common applications are civil and agricultural.
| Title | Description |
|---|---|
| Suction and delivery outlet | cast iron GG25 |
| Valve | stainless steel AISI 304 |
| Impellers and diffusers | mechanical cast iron GG25; impellers on request AISI 304 |
| Upper bushings | rubber NBR |
| Shaft pump side | stainless steel AISI 304 |
| Liquid temperature | max 50 gr/m³ |
