Overview

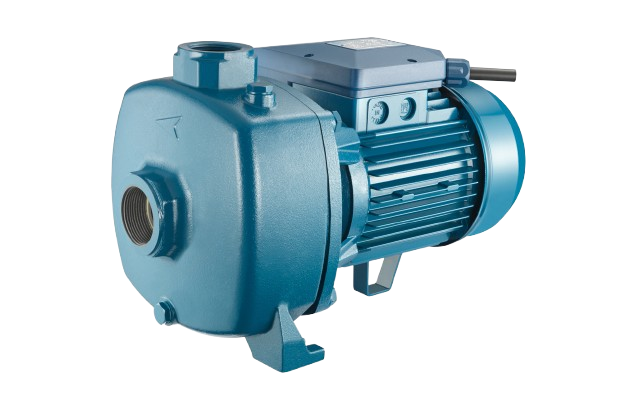

Single-impeller centrifugal pump, extremely quiet, suitable for domestic, civil and industrial applications. The pump guarantees constant pressure at the variation of flow rates.

CONSTRUCTION FEATURES

Title Description
Pump body cast iron
Motor bracket cast iron (45, 50, 164÷550); aluminum (75÷100)
Impeller noryl® (45) noryl® or brass (50-314) brass (400-550)
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 416 (45÷100) steel AISI 303 (164÷550)
Ambient temperature impeller in noryl®: 0 - 50 °C brass impeller: 0 - 90 °C
Pump body gasket max 6 bar (45-100) max 8 bar (164-550)

Motor

Title Description
2 poles induction motor 3~ 230/400V-50Hz 1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
MODEL 1~ MODEL 3~ HP kW FLOW RATE (l/min) H (m)
CM400 CMT400 0.4 3 50 ÷ 300 45.2 ÷ 32.5
CM45/00 CMT45/00 4 0.3 20 ÷ 70 17.4 ÷ 8.9
CMT550 5.5 4 50 ÷ 350 54.1 ÷ 38.4
CM50/00 CMT50/00 0.5 0.37 20 ÷ 90 20.5 ÷ 12
CM50/01 CMT50/01 0.5 0.37 20 ÷ 90 20.5 ÷ 12
CM75/60 CMT75/60 0.8 0.59 20 ÷ 90 25.8 ÷ 17.5
CM75/61 CMT75/61 0.8 0.59 20 ÷ 90 25.8 ÷ 17.5
CM100V/60 1 0.74 20 ÷ 90 29 ÷ 21.5
CM100V/61 1 0.74 20 ÷ 90 29 ÷ 21.5
CM100/60 CMT100/60 1 0.74 20 ÷ 90 32.5 ÷ 25.2
CM100/61 CMT100/61 1 0.74 20 ÷ 90 32.5 ÷ 25.2
CM164/00 CMT164/00 2 1.5 20 ÷ 110 39.1 ÷ 27.2
CM164/01 CMT164/01 2.5 1.5 20 ÷ 110 39.1 ÷ 27.2
CM214/00 CMT214/00 2.5 1.85 20 ÷ 120 45.9 ÷ 35.5
CM214/01 CMT214/01 3 1.85 20 ÷ 120 45.9 ÷ 35.5
CM314/00 CMT314/00 3 2.2 20 ÷ 130 52.7 ÷ 39.2
CM314/01 CMT314/01 4 2.2 20 ÷ 130 52.7 ÷ 39.2
MODEL 1~ MODEL 3~ HP kW FLOW RATE (l/min) H (m)
CM100/61 CMT100/61 1 0.74 20 ÷ 90 32.5 ÷ 25.2
CM164/00 CMT164/00 2 1.5 20 ÷ 110 41.6 ÷ 26.9
CM164/01 CMT164/01 2 1.5 20 ÷ 110 41.6 ÷ 26.9
CM214/00 CMT214/00 2.5 1.84 20 ÷ 120 47.3 ÷ 31.3
CM214/01 CMT214/01 2.5 1.84 20 ÷ 120 47.3 ÷ 31.3
CM314/00 CMT314/00 3 2.2 20 ÷ 130 52.1 ÷ 33.5
CM314/01 CMT314/01 3 2.2 20 ÷ 130 52.1 ÷ 33.5
CM400 CMT400 4 3 50 ÷ 300 45.2 ÷ 30.4
CM45/00 CMT45/00 0.4 0.3 20 ÷ 70 19.4 ÷ 11.5
CMT550 5.5 4 50 ÷ 350 55.1 ÷ 34.9
CM50/00 CMT50/00 0.5 0.37 20 ÷ 90 20.5 ÷ 12
CM50/01 CMT50/01 0.5 0.37 20 ÷ 90 20.5 ÷ 12
CM75/60 CMT75/60 0.8 0.59 20 ÷ 90 25.8 ÷ 17.5
CM75/61 CMT75/61 0.8 0.59 20 ÷ 90 25.8 ÷ 17.5
CM100V/60 1 0.74 20 ÷ 90 29 ÷ 21.5
CM100V/61 1 0.74 20 ÷ 90 29 ÷ 21.5
CM100/60 CMT100/60 1 0.74 20 ÷ 90 32.5 ÷ 25.2
CM70 CMT70 0.6 0.45 20 ÷ 110 28.8 ÷ 21.3
