POOL1

POOL1

DomesticDomestic
ResidentialResidential

Technical Documentation

For More Infomation

To inquire about the price, contact the experts of RYAN GOLDEN

Certification

cei
ukca
ucra
eac
ce

Overview

Self priming pump for pools with a large builtin pre-filter, which, together with the excellent hydraulic performance of the pump, generates a very high filtration capacity. The transparent polycarbonate lid easily allows inspection of the pre-filter sieve. Pump body, seal housing and diffuser reinforced with glass fibre polypropylene are resistant to chemical products used for pools and guarantee excellent duration.

CONSTRUCTION FEATURES

Title Description
Pump body lid and diffuser polypropylene
Motor bracket alluminum
Impeller noryl®
Mechanical seal ceramic-graphite-AISI 316
Motor shaft stainless steel AISI 316
Liquid temperature max 40 °C
Pre-filter polycarbonate

Motor

Title Description
2 poles induction motor 3~ 230/400V-50Hz, 1~ 230V-50Hz
Insulation class F
Protection degree IP55

Related Products

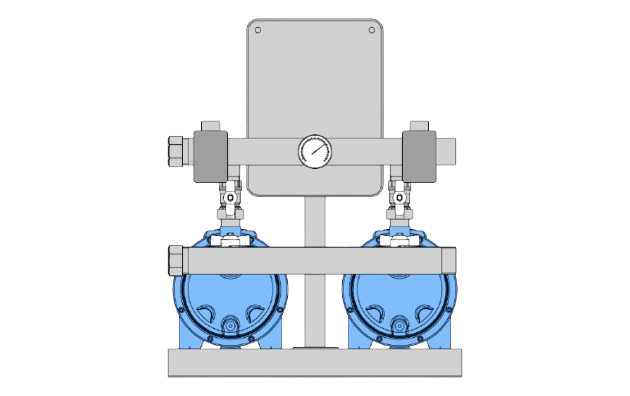

Fully automatic fixed speed booster sets consisting of 2 pumps.
Add to cart
The new electronic system for pumps EASY Control applicable to…
Add to cart
Stainless steel multistage horizontal pump. Suitable for clean water, pressurizing…
Add to cart

MP

Horizontal, self-priming, multistage centrifugal pump, particularly suitable for small and…
Add to cart

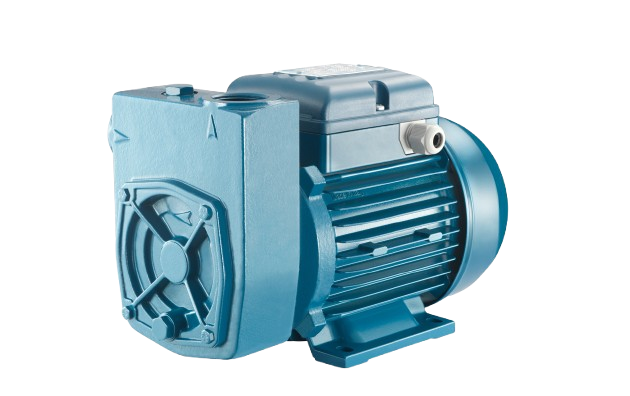

MD

Volumetric pump with liquid ring impeller that gives considerable suction…
Add to cart

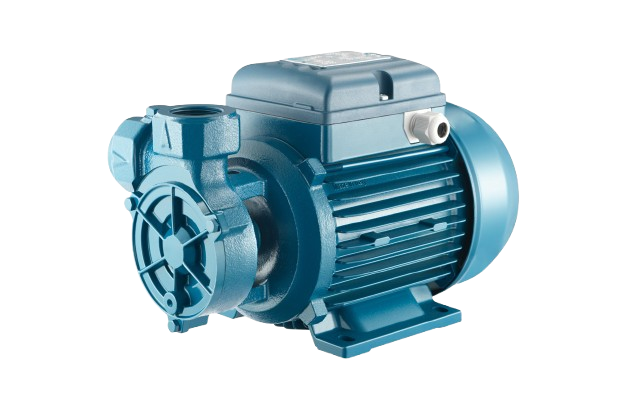

CP
