Residential

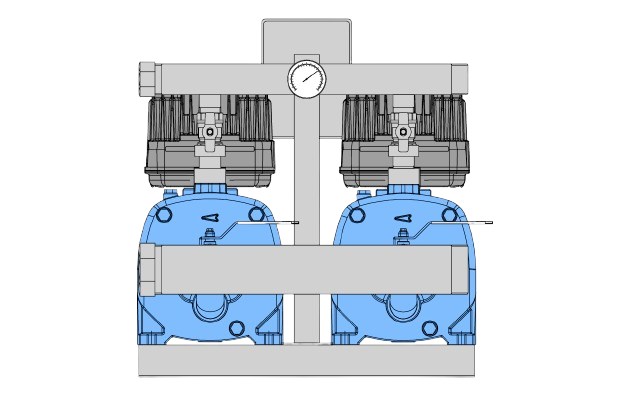

Fully automatic variable speed booster sets consisting of 2 pumps.
| Title | Description |
|---|---|
| Shell | AISI 304 |
| Pump body | cast iron |
| Impeller, diffuser | noryl® (V) , AISI 304 (SV) |
| Mechanical seal | ceramic-graphite-EPDM , graphite-SiC-EPDM |
| Liquid temperature | +5 ÷ 35 °C noryl®, -15 ÷ 90 °C AISI 304 |
| Manifold | galvanized iron |
| Variable speed drive | 1~ EPIC, 3~ EPIC-to |
| Title | Description |
|---|---|
| 2 poles induction motor | 1~ 230V-50Hz , 3~ 230/400V-50Hz ≤ 4kW , 3~ 400/690V-50Hz > 4kW |
| Insulation class | F |
| Protection degree | IPX4, IPX5 ≥ 4,5 HP |
