Overview

Aquadomus is an integrated ‘Plug&Play’ system to manage water pressurization for domestic and residential applications. The electronic control (E-IPFC) manages the operation of the system in order to maintain the pressure constant even if the conditions of use change. It can be driven and monitored by a dedicated app “UnyConnect”. It consists of a multistage pump, a permanent magnet synchronous motor, an electronic inverter control, an expansion tank, a no return valve, a pressure sensor, a cable with plug.

CONSTRUCTION FEATURES

Title Description
Pump body stainless steel AISI 304
Motor bracket aluminum
Impellers and diffusers noryl®
Mechanical seal ceramic-graphite-EPDM
Pump shaft stainless steel AISI 303
Liquid temperature -5 ÷ +35 °C
Cable H07 RNF 1,5 m

Motor

Title Description
Motor 4 poles synchronus motor with permanent magnet
Insulation class F
Protection degree IPX4
MODEL 1~ MODEL 3~ HP kW FLOW RATE (l/min) H (m)

Related Products

Self priming pump for pools with a large builtin pre-filter,…
Add to cart

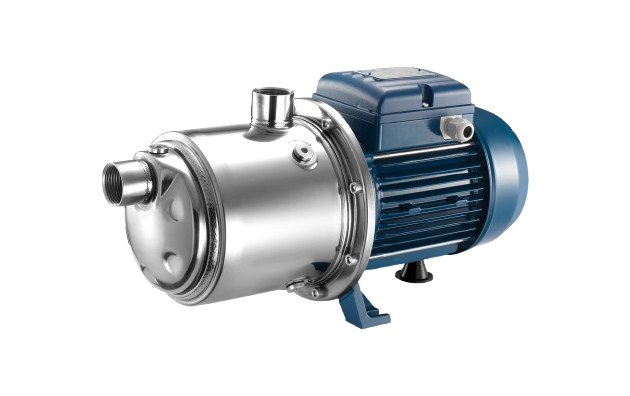

Stainless steel multistage horizontal pump. Suitable for clean water, pressurizing…
Add to cart

CS

Single-impeller, medium to high-flow centrifugal pump with 2", 3" and…
Add to cart

CM

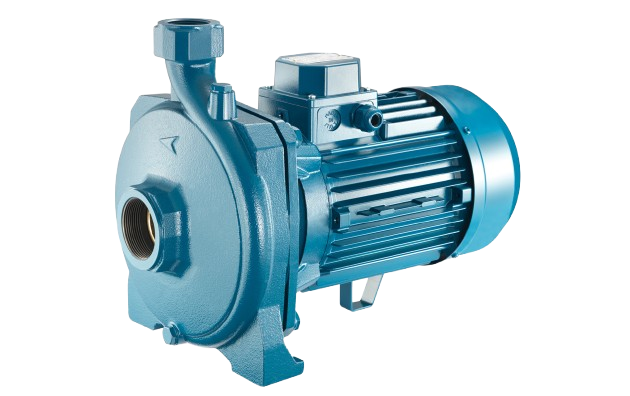

Single-impeller centrifugal pump, extremely quiet, suitable for domestic, civil and…
Add to cart
Stable—Pure sine wave with THD <3% Sophisticated—Precision apparatus suitable Smart—Output…
Add to cart

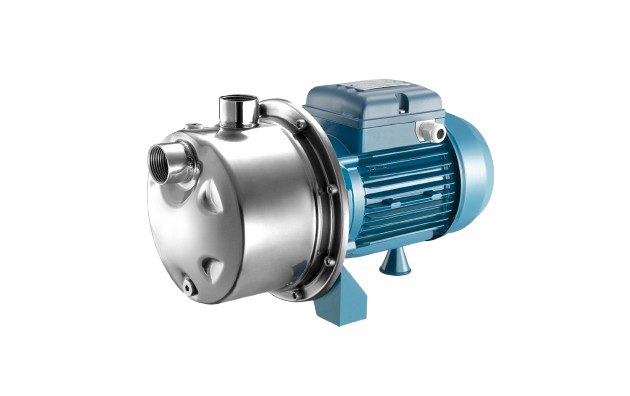

Self-priming centrifugal pump for domestic applications and installations where air…
