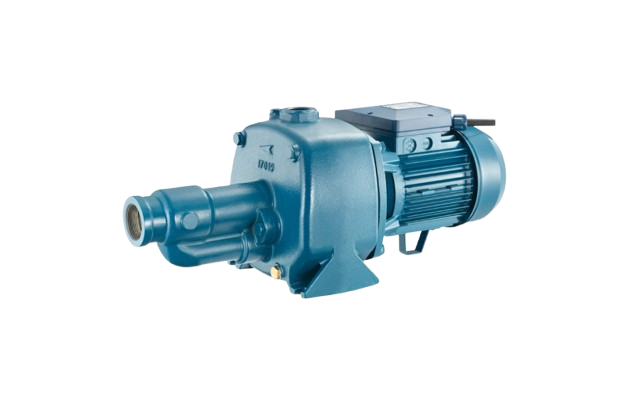

Self-priming centrifugal pump with 4″ external ejector. Suitable for water supply (even if mixed with gas) of small domestic systems; when connected to autoclave tanks it provides an automatic pressurisation system.
| Title | Description |
|---|---|
| Pump body | cast iron |
| Motor bracket | aluminum (75Ă·100), cast iron (150Ă·200) |
| Impeller | noryl® or brass |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | steel AISI 416 (75Ă·100), steel AISI 303 hydraulic part (150Ă·200) |
| Ambient temperature | 0 - 50 °C |
| Pump body gasket | max 8 bar |
| Title | Description |
|---|---|
| 2 poles induction motor | 3~ 230/400V-50Hz,1~ 230V-50Hz |
| Insulation class | F |
| Protection degree | IPX4 |
| MODEL 1~ | MODEL 3~ | HP | kW | FLOW RATE (l/min) | H (m) |
|---|---|---|---|---|---|
| AP 75-4"/00 | APT 75-4"/00 | 0.8 | 0.59 | ||
| AP 100-4"/00 | APT 100-4"/00 | 1 | 0.74 | ||
| AP 100-4"/01 | APT 100-4"/01 | 1 | 0.74 | ||
| AP 150-4"/00 | APT 150-4"/00 | 1.5 | 1.1 | ||
| AP 200-4"/00 | APT 200-4"/00 | 2 | 1.5 | ||
| AP 150-4"/01 | APT 150-4"/01 | 1.5 | 1.1 | ||
| AP 200-4"/01 | APT 200-4"/01 | 2 | 1.5 |
| MODEL 1~ | MODEL 3~ | HP | kW | FLOW RATE (l/min) | H (m) |
|---|---|---|---|---|---|
| AP 75-4"/00 | APT 75-4"/00 | 0.8 | 0.59 | ||
| AP 100-4"/00 | APT 100-4"/00 | 1 | 0.74 | ||
| AP 100-4"/01 | APT 100-4"/01 | 1 | 0.74 | ||
| AP 150-4"/00 | APT 150-4"/00 | 1.5 | 1.1 | ||
| AP 200-4"/00 | APT 200-4"/00 | 2 | 1.5 | ||
| AP 150-4"/01 | APT 150-4"/01 | 1.5 | 1.1 | ||
| AP 200-4"/01 | APT 200-4"/01 | 2 | 1.5 |
